Rotary Tricone Bits — The Reliable Choice for Efficient Rock Drilling
When it comes to deep rock drilling and mining applications, Rotary Tricone Bits remain one of the most trusted and versatile tools in the industry. Their robust structure, cutting efficiency, and adaptability to various formations make them the preferred choice for professionals across mining, water well, geothermal, and oil & gas drilling operations.
At Fasikon Drilling Tools, we specialize in producing high-performance Rotary Tricone Bits designed for durability, stability, and maximum penetration rate — even under the most demanding drilling conditions.
1. What Is a Rotary Tricone Bit?

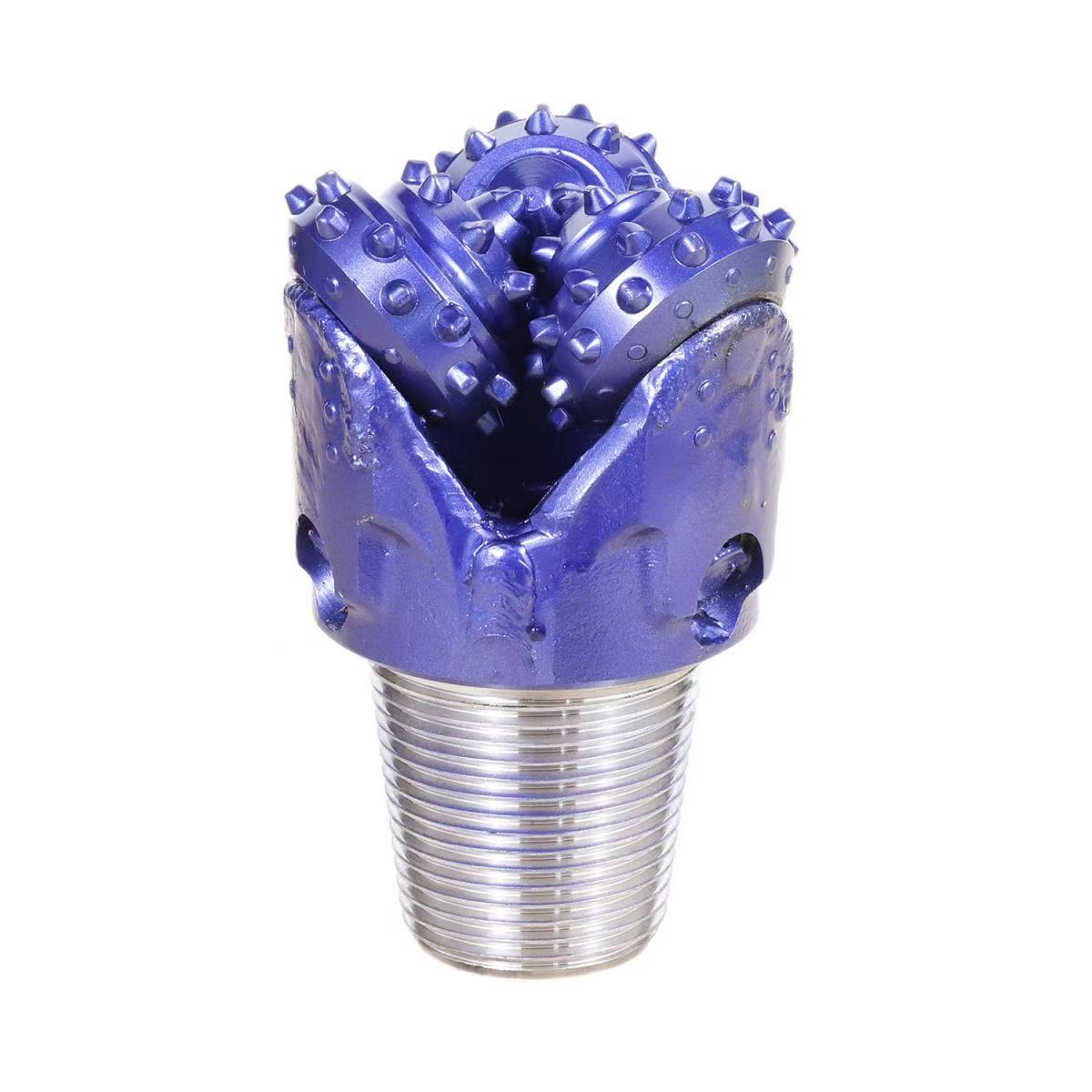

A Rotary Tricone Bit is a type of rock drilling bit that uses three rotating cones, each fitted with multiple tungsten carbide inserts (TCI) or steel milled teeth. As the bit rotates, the cones roll and crush the rock layer efficiently.
The design distributes cutting forces evenly across the cones, reducing wear and extending bit life. Depending on the rock formation, tricone bits are classified into soft, medium, and hard formation types — allowing drillers to choose the optimal configuration for each project.
2. How Rotary Tricone Bits Work
The working principle is based on rotary crushing. As the bit turns under weight-on-bit (WOB), the cones rotate in the opposite direction. Each cone’s teeth strike the rock in a chipping and crushing motion, breaking it into small fragments that are flushed away by circulating air or drilling mud.
This mechanism provides:
-
Stable drilling performance in various formations
-
Lower torque and vibration, protecting the drill string
-
High penetration rates for both soft and medium-hard rocks
3. Types of Rotary Tricone Bits
Fasikon offers a full range of tricone bits to meet different geological conditions:
| Bit Type | Cutting Structure | Formation Suitability | Typical Applications |
|---|---|---|---|
| Steel Tooth Bit | Milled steel teeth | Soft to medium formations | Water well, geothermal drilling |
| Tungsten Carbide Insert (TCI) Bit | Carbide buttons | Medium to hard formations | Mining, oil & gas, geothermal |
| Sealed Bearing Bit | Lubricated and sealed | Deep or long-duration drilling | Oil & gas exploration |
| Open Bearing Bit | Air-cooled design | Shallow or short-term drilling | Water well, blast hole drilling |
4. Advantages of Fasikon Rotary Tricone Bits
Our Fasikon Rotary Tricone Bits are engineered for performance and longevity:
✅ Precision Machined Bodies – Ensuring high concentricity and balance for smooth drilling.
✅ Premium-Grade Carbide Inserts – Offering superior wear resistance and longer service life.
✅ Advanced Bearing Systems – Available in both open and sealed types to meet different operational needs.
✅ Optimized Hydraulic Design – Enhancing cuttings removal and cooling efficiency.
✅ Strict Quality Control – Each bit undergoes rigorous inspection and balancing before shipment.
5. Applications Across Industries
Fasikon tricone bits are widely used in:
-
Mining and Quarrying – For overburden and hard rock drilling
-
Oil & Gas Exploration – Reliable for deep well operations
-
Geothermal Energy Projects – Withstand high temperature and pressure
-
Water Well Drilling – Efficient and cost-effective for borehole construction
6. Choosing the Right Tricone Bit
Selecting the correct bit depends on several factors:
-
Rock hardness and abrasiveness
-
Drilling depth and equipment type
-
Required penetration rate vs. bit life
Fasikon engineers are available to recommend the most suitable model based on your geological report and drilling objectives.
7. Why Choose Fasikon Drilling Tools
With years of expertise in DTH hammers, tricone bits, and drilling accessories, Fasikon Drilling Tools stands as a professional tricone drill bit supplier offering both OEM customization and fast delivery worldwide.
We are committed to helping our partners achieve higher drilling efficiency and lower cost per meter through reliable and innovative drilling tools.
