Top Hammer Drilling Tools: Structure, Working Principle and Key Performance Factors
By Fasikon Drilling Tools
In surface mining, quarrying, construction, and bench drilling operations, top hammer drilling tools play a critical role in achieving efficient and accurate rock penetration. As a professional drilling tools supplier, Fasikon Drilling Tools provides high-performance top hammer solutions designed for reliability, drilling accuracy, and long service life.
This article introduces the structure, working principle, material technology, and performance factors of top hammer drilling tools, helping drilling contractors and equipment distributors better understand this essential drilling system.
1. What Is Top Hammer Drilling?
Top hammer drilling is a rock drilling method in which the impact force is generated at the top of the drill string by a hydraulic or pneumatic rock drill. The impact energy is transmitted through:
-
Shank Adapter
-
Drill Rod
-
Drill Bit
to the rock at the bottom of the hole.
Compared with DTH drilling, the impact source is located outside the hole, making top hammer drilling especially suitable for:
-
Bench drilling
-
Quarry drilling
-
Construction blasting
-
Short to medium depth holes
Typical hole diameters range from 32 mm to 127 mm, with drilling depths generally up to 40 meters.
2. Main Components of Top Hammer Drilling Tools
A complete top hammer drilling system consists of four core components:

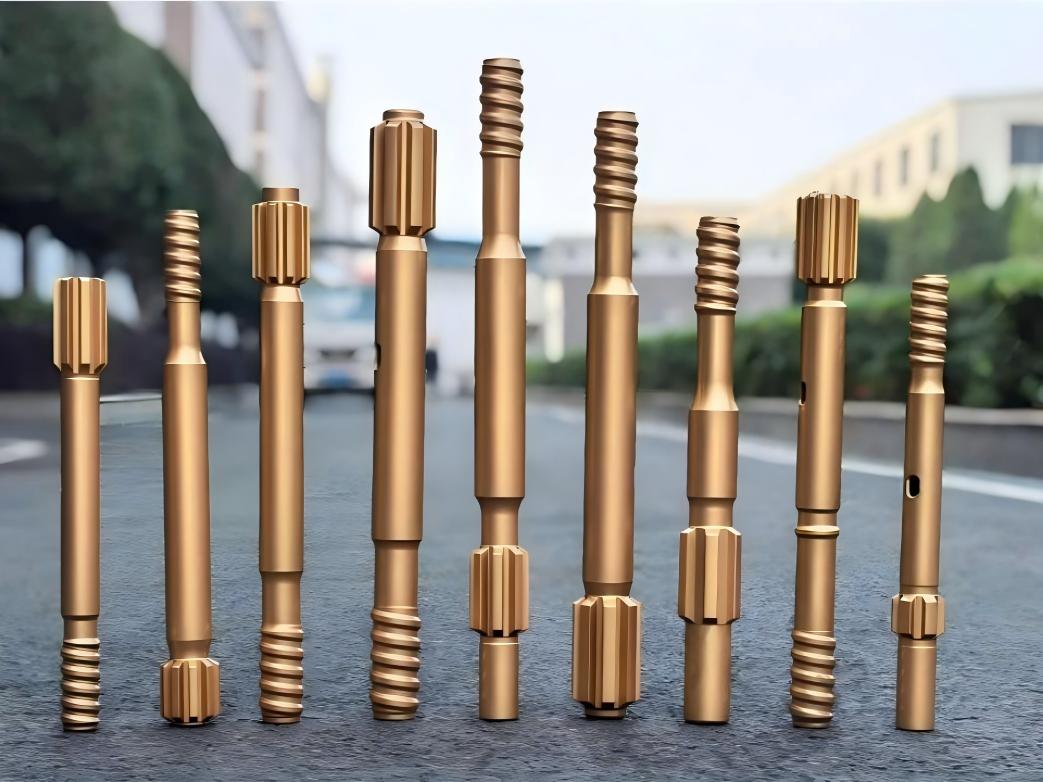

2.1 Shank Adapter
The shank adapter connects the rock drill and the drill string. It transmits:
-
Impact energy
-
Torque
-
Rotation
High-quality heat treatment and precise spline machining are essential to reduce wear and prevent premature failure.
2.2 Drill Rods / Extension Rods
Drill rods transmit energy from the top to the drill bit. Common types include:
-
MF rods (Male-Female)
-
Speed rods
-
Extension rods
Fasikon drill rods are manufactured from high-strength alloy steel with optimized heat treatment to ensure high fatigue resistance and straightness stability.
2.3 Coupling Sleeves
Coupling sleeves connect drill rods together. They must withstand:
-
High cyclic impact loads
-
Strong torsional stress
Material purity and precise thread matching are critical to avoid thread slippage and breakage.
2.4 Top Hammer Drill Bits
The drill bit directly contacts the rock. Fasikon top hammer bits are available with:
-
Button bits
-
Cross bits
-
Retrac bits
With carbide button grades optimized for different rock hardness levels.
3. Working Principle of Top Hammer Drilling
The working principle can be summarized as “impact + rotation + flushing”:
-
The rock drill generates high-frequency impact energy.
-
Impact and rotational torque are transferred through the shank adapter and rods.
-
The drill bit crushes the rock under repeated impact.
-
Compressed air or water flushes cuttings out of the hole.
Drilling efficiency depends on energy transfer efficiency, rotational stability, and flushing effectiveness.
4. Key Performance Factors of Top Hammer Drilling Tools
4.1 Material Selection
Fasikon uses premium alloy steels combined with strict metallurgical control to ensure:
-
High impact toughness
-
Stable hardness gradient
-
Excellent fatigue resistance
4.2 Heat Treatment Technology
Advanced carburizing, quenching, and tempering processes ensure:
-
Wear-resistant exterior
-
Tough core structure
-
Extended service life in harsh drilling conditions
4.3 Carbide Button Quality
For drill bits, tungsten carbide buttons determine:
-
Penetration speed
-
Wear resistance
-
Bit life in abrasive formations
Fasikon selects multi-grain carbide grades suitable for hard, medium, and soft rock layers.
4.4 Thread Precision and Rod Straightness
Poor thread accuracy leads to energy loss and abnormal vibration. Fasikon applies CNC machining and laser straightness inspection to guarantee:
-
Accurate thread engagement
-
Low energy transmission loss
-
Reduced risk of rod breakage
5. Application Areas of Top Hammer Drilling Tools
Top hammer drilling systems are widely used in:
-
Open-pit mining
-
Quarry bench drilling
-
Road and tunnel construction
-
Foundation and anchoring projects
-
Blasting hole drilling for civil engineering
Their advantages include high drilling accuracy, fast penetration in shallow holes, and low operating cost.
6. Fasikon Top Hammer Drilling Tool Advantages
At Fasikon Drilling Tools, we focus on delivering stable and cost-efficient top hammer solutions for global customers:
-
Complete product range: shank adapters, rods, couplings, and bits
-
OEM/ODM customization for different rigs and brands
-
Strict quality inspection at each production stage
-
Stable batch consistency for distributors and large projects
-
Competitive pricing for long-term cooperation
Our products are widely exported to Africa, the Middle East, Central Asia, and South America, serving quarry operators, mining contractors, and drilling equipment distributors.
7. How to Choose the Right Top Hammer Drilling Tools?
When selecting top hammer drilling tools, users should consider:
-
Rock hardness and abrasiveness
-
Required hole diameter and depth
-
Matching with rock drill model
-
Flushing method (air/water)
-
Expected drilling cost per meter
Fasikon’s technical team provides model matching and application guidance to help customers maximize drilling efficiency and tool lifespan.
8. Conclusion
Top hammer drilling tools remain one of the most efficient and economical solutions for shallow to medium-depth hard rock drilling. With the right combination of material technology, heat treatment, and precision machining, drilling performance and tool life can be greatly improved.
Fasikon Drilling Tools is committed to supplying reliable, durable, and cost-effective top hammer drilling solutions for global drilling professionals.
For technical support, pricing, or sample testing, feel free to contact our engineering team.
